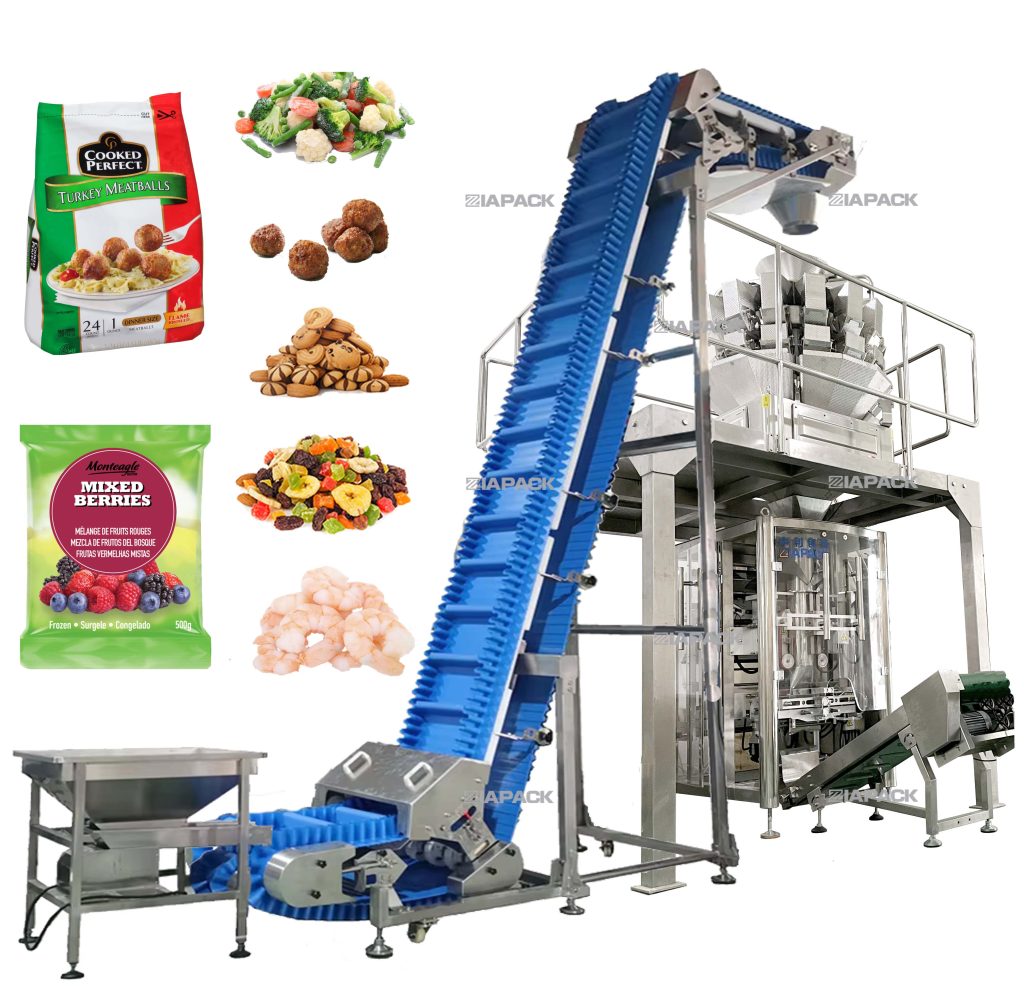

Automatski stroj za vaganje, punjenje i pakiranje smrznute hrane

Uvod :

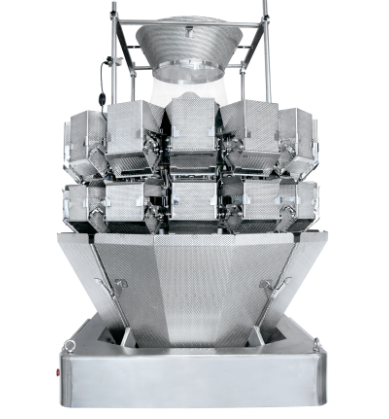

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

primjena:

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Značajke:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Tehnički podaci:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Uvod :

Ovaj stroj može automatski realizirati funkcije izrade vrećica, punjenja, brtvljenja, tiskanja, rezanja itd. Ovaj stroj može automatski doći do punjenja i zatvaranja vrećica.

Ovaj stroj za pakiranje koristi uvozni servo motor za uvlačenje filma, a sučelje čovjek-stroj koristi napredni zaslon osjetljiv na dodir. Rad je jednostavniji i praktičniji. Sve komponente prihvaćaju međunarodno poznatu marku, PLC je SIEMENS, servo motor je PANASONIC, ekran osjetljiv na dodir je SIEMENS, cilindar i zračni ventil su SMC. dijelovi koji dolaze u dodir s materijalom 、upravljački ormar 、glavni okvir izrađeni su od nehrđajućeg čelika304

Tehnički parametri:

Brzina pakiranja (MAX): 20-50 vrećica/min

Vrsta torbe: jastučna torba .gusseted bag

Bag size: bag width 60-250mm bag length 80-350mm

Potrošnja komprimiranog zraka: 0,6 MPa 350 L/min

Električni zahtjevi: 380V/5,5 kW50 Hz
