Uvod :

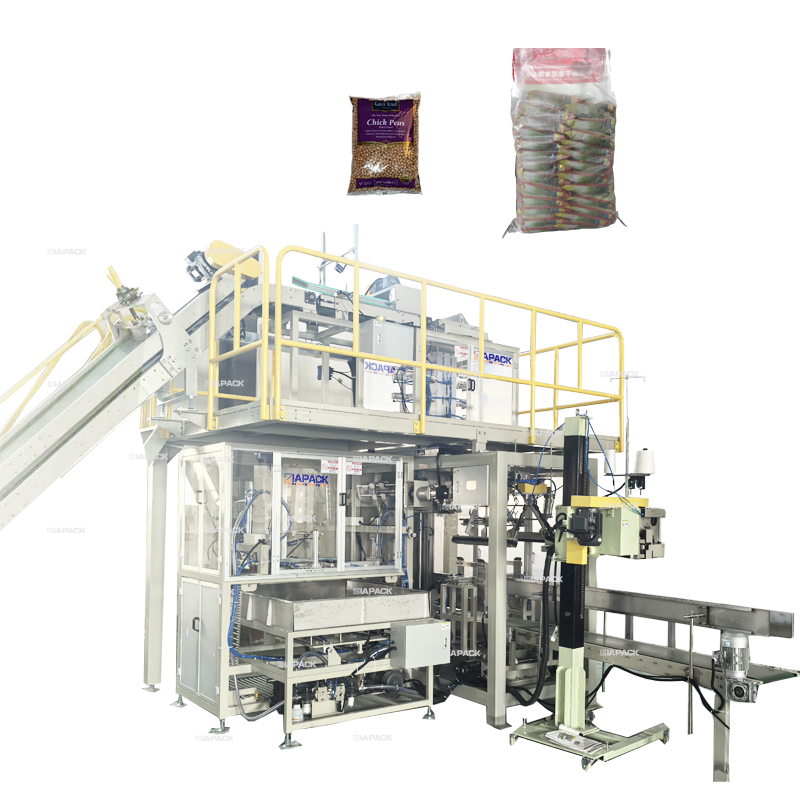

The secondary packaging unit is a fully automatic packaging process that automatically loads the products output from the upstream vertical packaging machine into woven bags and sews them for output according to the requirements (arrangement form, quantity, etc.).
This machine is mainly to complete putting the packaged pouch products by request neatly into bag .sewing bag out of the automatic packing process.And realize filling small bag into bags automatically .So saving manpower ,material and financial inputs reducing production costs .Improving production efficiency .The unit is widely used in washing powder,salt ,sugar,seeds milk powder and other powder granular industries .It is the first choice for customers.
Advantages :
1 This packing unit can realize bag feeding bag open counting filling moving output sewing fully automatically
2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .
3 Can be arranged to achieve a variety of forms to meet different needs of customers
Packing form : Different packing form need different packing machine unit
Technical parameters:
Packaging range:500gram-3kg (Small pouchs weight)
Packing speed :50-80 pouchs /min
Packaging Materials: pouchs:PE & Laminated film ,Pre-made open mouth bag ；PP woven bag ,kraft paper bag,Plastic bag etc .

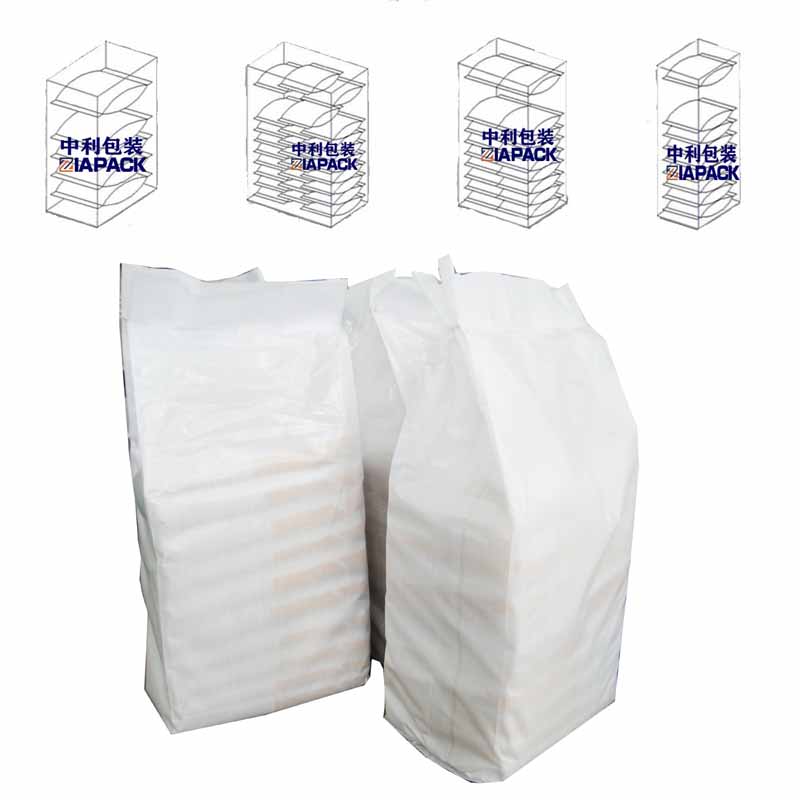

Ranking form:Single row flat setting /Double row flat setting /Double row vertical setting /Three rows flat setting
Compressed air: 0.6～0.8MPa
Power: 20Kw 380V±10% 50Hz
