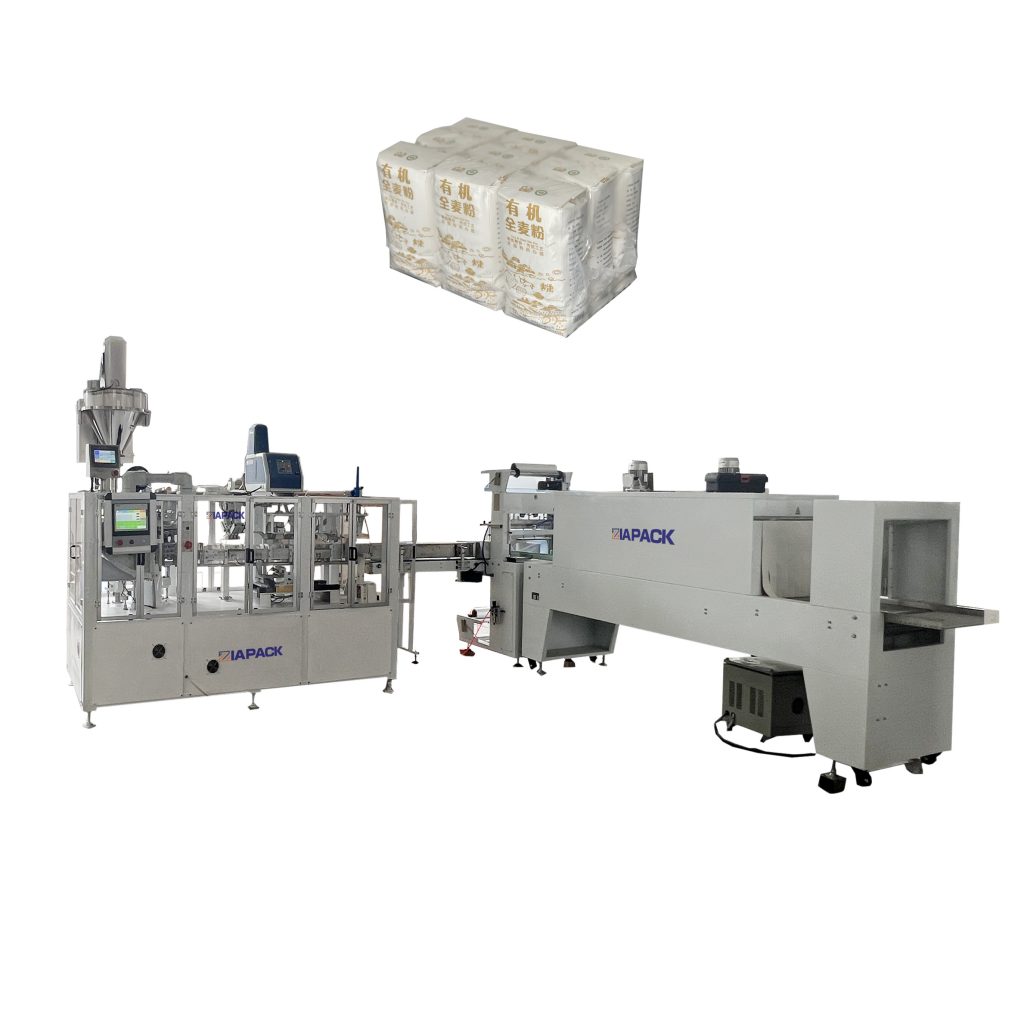

Automatic wheat flour packaging machine for pre-made paper bag (1-2kg )
Introduction :
This machine line consists of one set of ZLA2000 Auger measuring machine , one set ZL8-200 paper bag packaging
filling gluing machine, one set Electric controlling cabinet, one set of conveyor machine .According client requirement we can match the Ink jet printer machine and shrink packing machine for the finished products .The finished bag can be stand with pretty shape .The finished paper bag is friendly to the environment .The whole line are widely using for packing wheat flour , maize ,sugar and so on
Working process :

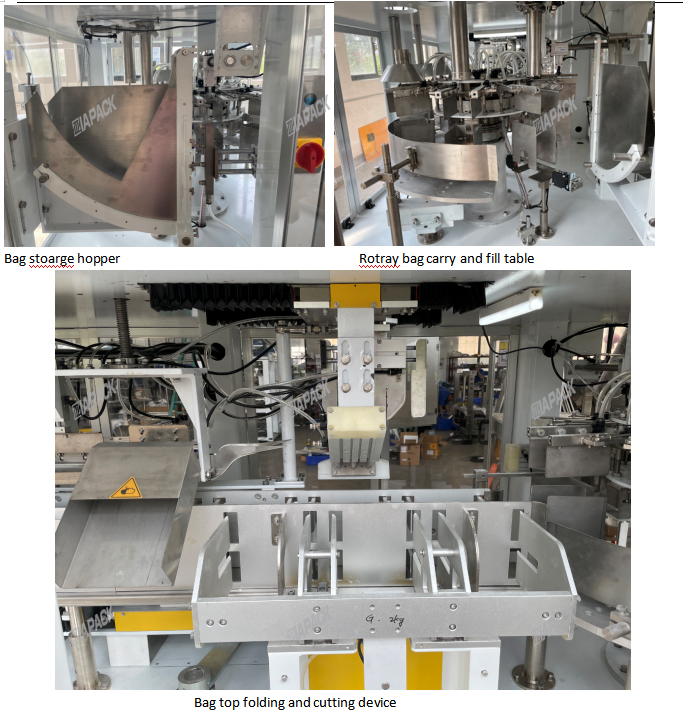

Products measuring—Empty bag-taking--Bag opening/filling---Bag-clamping---Bag top cutting
---bag top side folding---gluing---Full bag output----Date code inkjet printer(opinion ) ---Bag collect and arrange---Shrink packing (opinion )---Palletizing(opinion )
Technical parametovajs:
Filling range ：1--2kg/BAG Packing speed ：8-18BAGS/MIN
Powder Consume：8kw
Power : 3 phase 380V Compressed air ：≥ 0.6 mpa
Bag size ：Front width :80mm-110mm,
Side width :60-80mm,
Height:250-350mm
OVERALL SIZE：5500×4200×2750mm
MACHINE WIGHER：950kg
